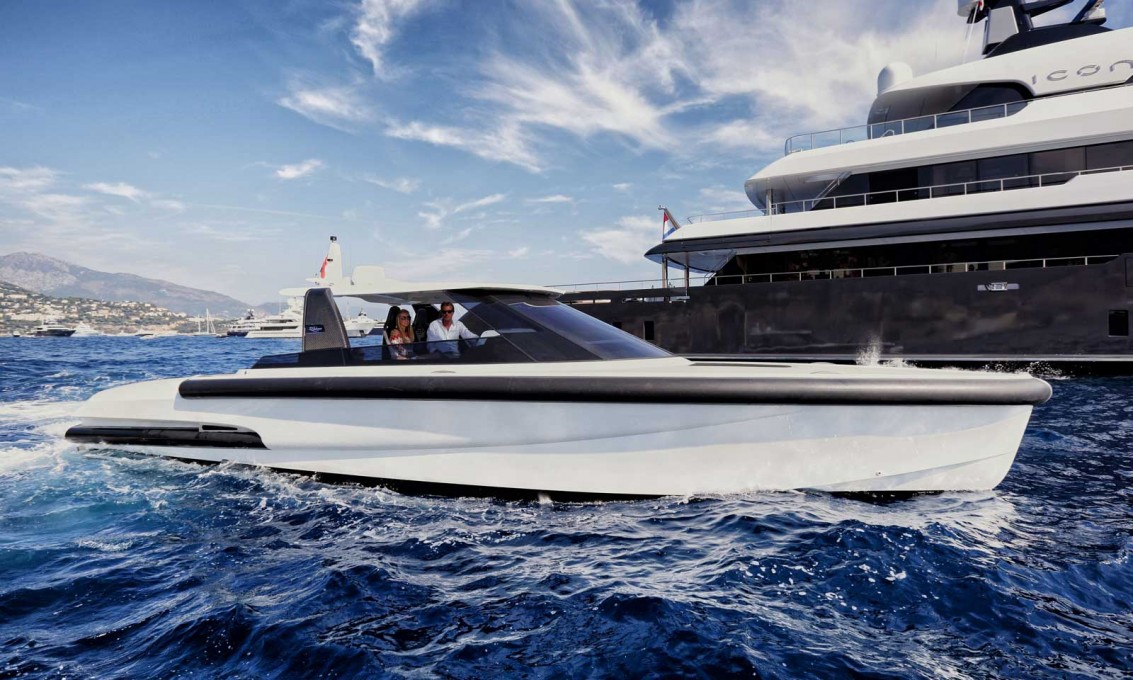

The Ribbon R45SC, a planing high-speed cruiser born of Dutch ingenuity.
Design and Styling
The uniquely modern styling of this spacious 45 footer bears the Ribbon characteristics of clean intersecting lines and innovative design. This lightweight structured cruiser is praised with many special features to ensure your experience and her handling are equally as impressive as her design.
Deck Plans
Specs
Principal Dimensions
Naval Architect: Ribbon Yachts – Vripack
Length overall: 13.79 m – 45.24 ft
Beam: 3.92 m – 12.86 ft
Draft: 0.73 m – 2.39 ft
Airdraft: 3.24 m – 10.63 ft
Displacement: 12.000 kg
Construction: Injection Composite
Hull shape:D eep V-planning deadrise 18°
Engines
Standard engines: 2x Cummins QSC8.3 – 500 hp
Optional engines: 2x Cummins QSC8.3 – 550 hp
2x Cummins QSC8.3 – 600 hp
Propulsion: Rolls-Royce Kamewa waterjets
Maximum speed: 34 – 43 kn
Capacities
Fuel tank: 1600 ltr – 423 gal
Water tank: 320 ltr – 84 gal
Black water tank: 100 ltr – 26 gal
Classification: CE approved B category
Maximum load: 1.250 kg
Maximum passengers: 14

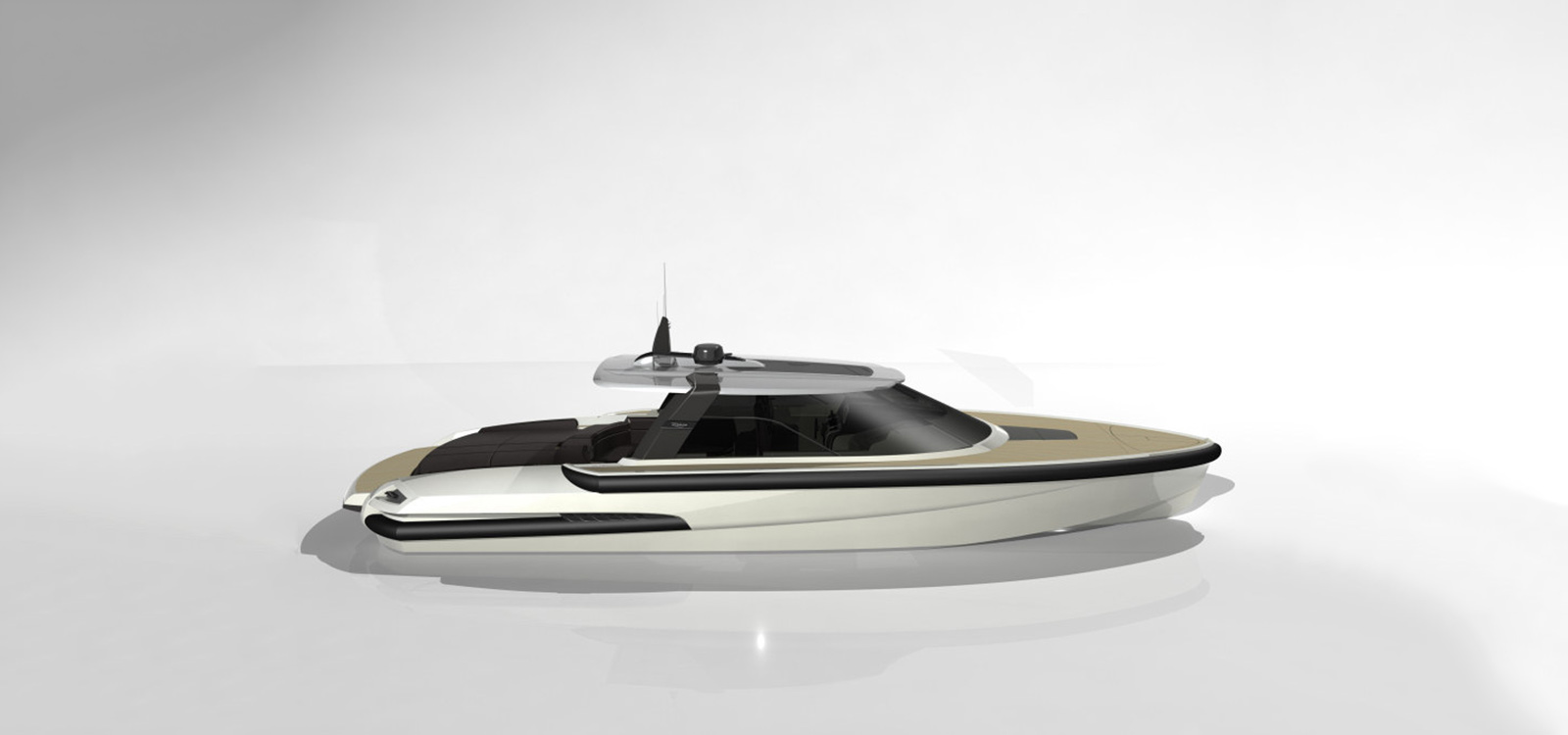

Ribbon R45CC, for cruising in panoramic luxury
Design and Styling
Deck Plans
Specs
VIEW ALL RIBBON YACHTS Design and Styling
The cockpit is completely sheltered by the huge windscreen around the entire cockpit area, so that the guests can safely relax and sunbathe during navigating. Like planes the Ribbon R45CC has a fully equipped helm and navigator cockpit, which is located in the middle of the yacht. The station is fitted out with three luxury Ribbon DNA cockpit seats are made of lightweight carbon fibre to guarantee the driver perfect support, even in the most extreme driving situations.
Deck Plans
Specs
Principal Dimensions
Naval Architect: Ribbon Yachts – Vripack
Length overall: 13.79 m – 45.24 ft
Beam: 3.92 m – 12.86 ft
Draft: 0.73 m – 2.39 ft
Airdraft: 3.24 m – 10.63 ft
Displacement: 13.000 kg
Construction: Injection Composite
Hull shape:D eep V-planning deadrise 18°
Engines
Standard engines: 2x Cummins QSC8.3 – 500 hp
Optional engines: 2x Cummins QSC8.3 – 550 hp
2x Cummins QSC8.3 – 600 hp
Propulsion: Rolls-Royce Kamewa waterjets
Maximum speed: 34 – 42 kn
Capacity
Fuel tank: 1600 ltr – 423 gal
Water tank: 320 ltr – 84 gal
Black water tank: 100 ltr – 26 gal
Classification: CE approved B category
Maximum load: 1.250 kg
Maximum passengers: 14
Ribbon Yachts R27 delivers optimum drive comfort and unprecedented quality
The Ribbon R27 is driven by one but enjoyed by seven. She has space for seven adults to be transported in a luxurious environment with the highest level of refinement.
Design and Styling
Beautifully finished, exquisitely personal
An interior of exceptional quality for pure comfort
The Ribbon R27 is a boat clothed in the finest materials. Silvergaurd leatherwork, in harmony with carbon fibre detailing, to create an environment where every detail has been specifically designed for luxury. Exterior styling is matched by interior materials manufactured by hand to achieve a finish never seen before on a boat of this size.
Deck Plans
Specs
PRINCIPAL DIMENSIONS
Naval Architect: Ribbon Yachts – Vripack
Length overall: 8.36 m – 27.43 ft
Beam: 2.55 m – 8.36 ft
Draft sterndrive: 0.76 m – 2.49 ft
Draft waterjet: 0.41 m – 1.34 f
Airdraft: 1.96 m – 6.43 ft
Airdraft ex window: 1.53 m – 5.02 ft
Displacement: 2.300 kg
Construction: Composite
Hull shape: Deep V-planning deadrise 17°
ENGINES AND CAPACITY
Standard engine: Mercury 350 MAG V8 – 300 hp
Optional engine: Mercury 377 MAG V8 – 320 hp
Mercury TDI 3.0 V6 – 230 hp
Mercury TDI 3.0 V6 – 260 hp
Mercury TDI 4.2 V8 – 335 hp
Mercury TDI 4.2 V8 – 370 hp
Standard propulsion Mercury sterndrive
Optional propulsion Rolls-Royce Kamewa waterjet
Maximum speed: 30 – 42 kn
Fuel tank: 372 ltr – 98 gal
Classification: CE approved C category
Maximum load: 600 kg
Maximum passengers: 7
